Z80

(Put abstract here)

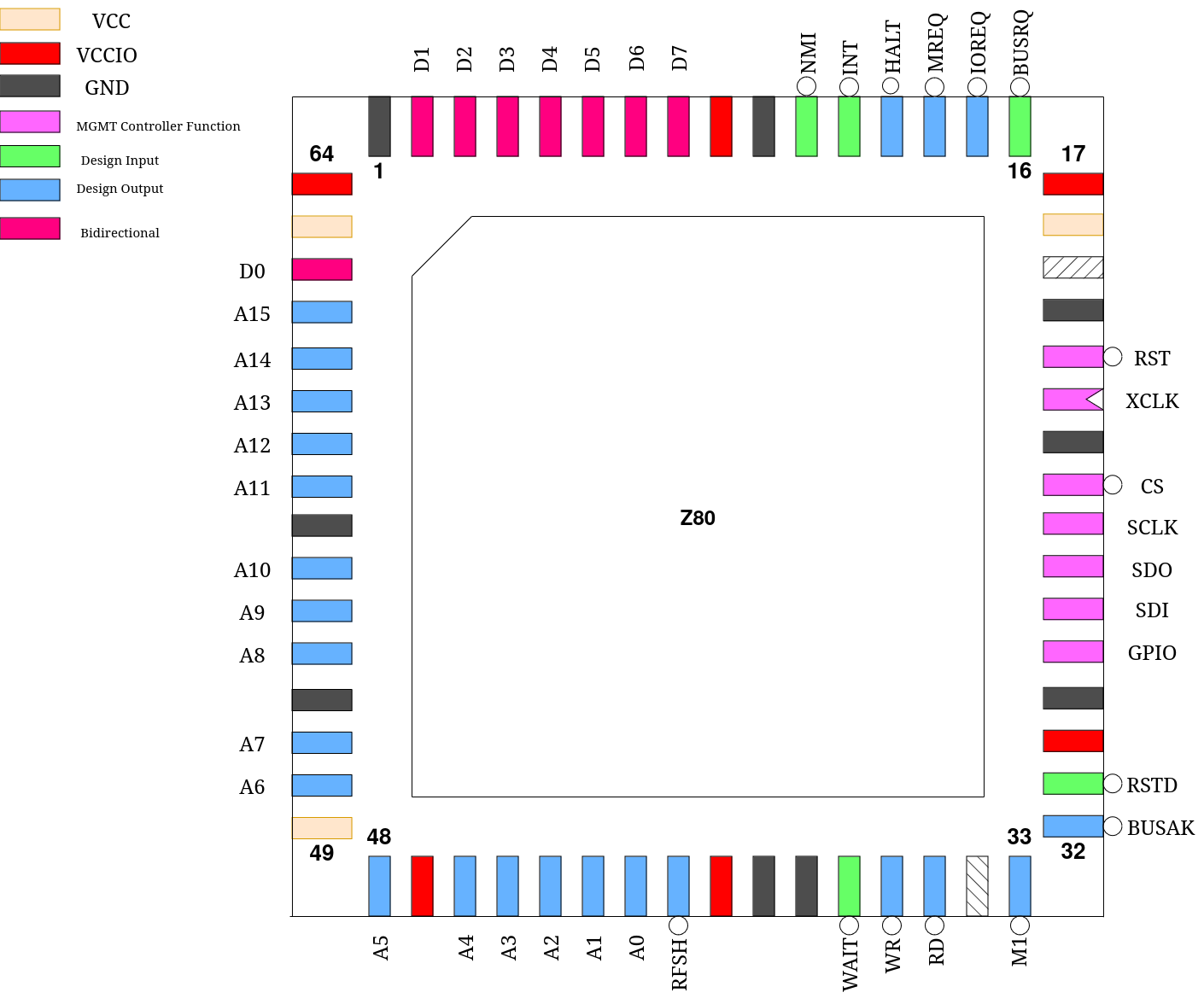

Pinout

Table 1 Pin description
Pin #	Name	Type	Summary
`mprj_io[0]`	RSTD	I	Active low design reset
`mprj_io[1]`	BUSAK	O	Bus request acknowledge
`mprj_io[2]`	M1	O	Machine Cycle 1 pulse
`mprj_io[4]`	RD	O	Read Enable
`mprj_io[5]`	WR	O	Write Enable
`mprj_io[6]`	WAIT	I	Wait for memory
`mprj_io[7]`	RFSH	O	Memory refresh enable
`mprj_io[23:8]`	A[15:0]	O	Address Bus
`mprj_io[31:24]`	D[7:0]	IO	Bi-directional Data Bus
`mprj_io[32]`	NMI	I	Non-Maskable Interrupt Request
`mprj_io[33]`	INT	I	Interrupt Request
`mprj_io[34]`	HALT	O	Indicates Halt condition
`mprj_io[35]`	MREQ	O	Memory Request
`mprj_io[36]`	IOREQ	O	IO Peripheral Request
`mprj_io[37]`	BUSRQ	I	Bus Request
